Descripción
La Guardera, un sello para puntos de carga y transferencia en equipos transportadores, se fabrica con el compuesto AT-PU®, un elastómero de poliuretano altamente resistente al desgaste por abrasión, corte e impacto.
Es fácil de instalar, se adapta a diferentes tipos de equipos transportadores, no daña la cinta transportadora y evita los derrames transversales. Además, su diseño y el compuesto AT-PU® ofrecen un mínimo coeficiente de rozamiento, reduciendo el desgaste y el consumo de energía del equipo.
AT-PU® 60 A AZUL ELASTICIDAD SUPERIOR, RESISTENCIA A LA ABRASIÓN, BAJO COEFICIENTE DE ROZAMIENTO, ALTA ABSORSIÓN AL IMPACTO
CARACTERÍSTICAS
• Dureza: 60 shore A (±5).
• Color: Azul.
• Largo: 10 m.
• Ancho: 150, 180, 200, 220, 250, y 300 mm
• Espesor: 6, 8, 10, 12 y 15 mm.
• Rotura por Elongación: 600%.
• Resistencia a la Abrasión (DIN 53 516:77): 25 mm3.
BENEFICIOS
• Mínimo coeficiente de rozamiento
• Máxima resistencia al desgaste.
• La tecnología del material AT-PU® alarga la vida útil de la cinta (banda), ya que no se cristaliza, principal causa de rotura, como si lo hacen los compuestos de caucho.
• Su excelente función de sello evita derrames transversales.
Description

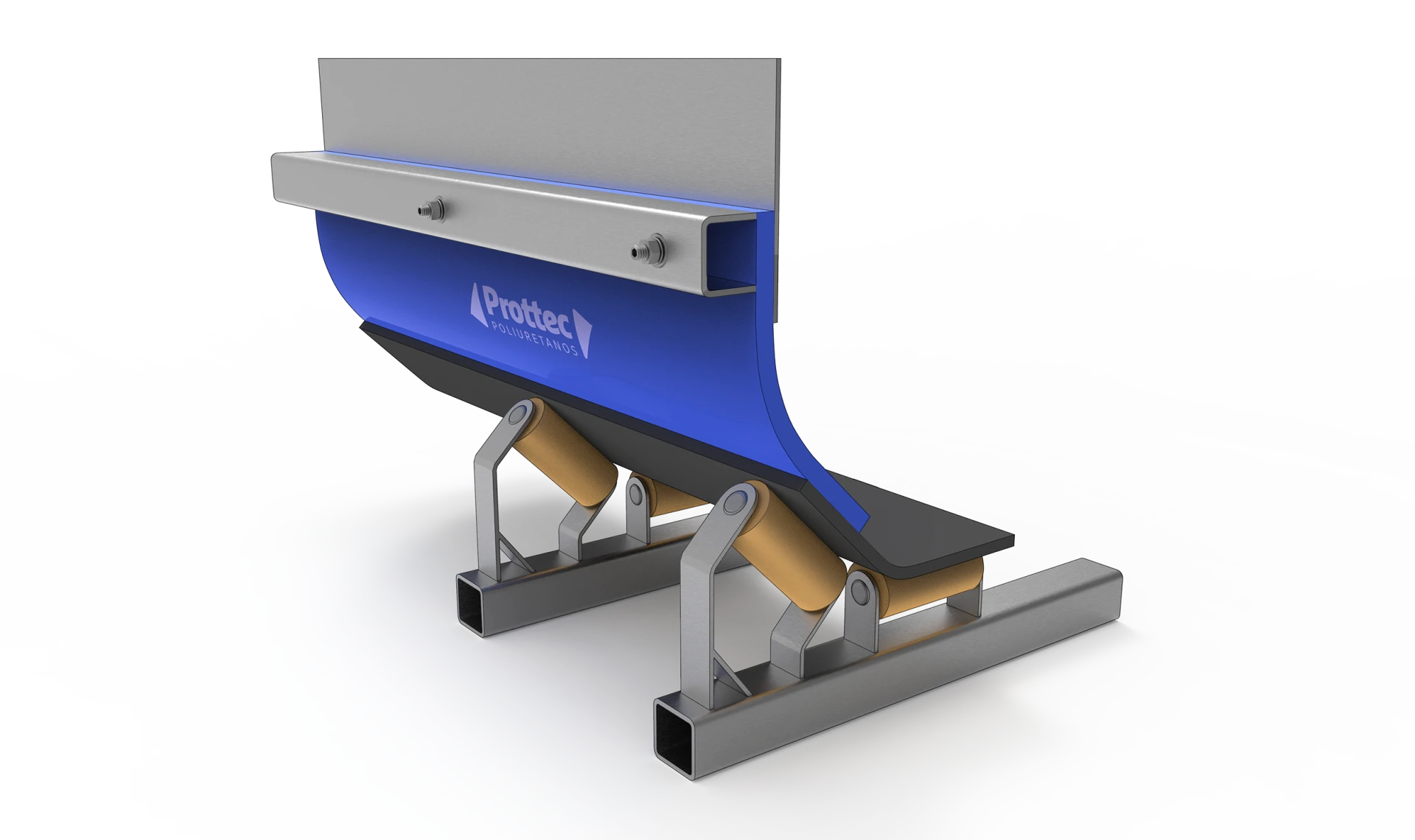

The Guard, a seal for loading and transfer points in conveyor equipment, is made with AT-PU® compound, a polyurethane elastomer highly resistant to abrasion, cutting, and impact wear.
It is easy to install, adapts to different types of conveyor equipment, does not damage the conveyor belt, and prevents lateral spillage. Additionally, its design and AT-PU® compound offer a minimal friction coefficient, reducing wear and equipment energy consumption.
AT-PU® 60 A BLUE SUPERIOR ELASTICITY, ABRASION RESISTANCE, LOW FRICTION COEFFICIENT, HIGH IMPACT ABSORPTION.
CHARACTERISTICS
• Hardness: 60 shore A (±5).
• Color: Blue.
• Length: 10 m.
• Width: 150, 180, 200, 220, 250, and 300 mm.
• Thickness: 6, 8, 10, 12, and 15 mm.
• Elongation at Break: 600%.
• Abrasion Resistance (DIN 53 516:77): 25 mm3.
BENEFITS
• Minimal friction coefficient.
• Maximum wear resistance.
• AT-PU® material technology extends the life of the belt, as it does not crystallize, a primary cause of breakage in rubber compounds.
• Its excellent sealing function prevents lateral spillage.
